- 제품코드 G041822
- 제품명 전자 팬-Cooling Fan
- 가격 가격협의
- 모델명 전자 팬-Cooling Fan
- 제품분류 전기/전자/통신/반도체전기전자관련 기타
- 사양 전자 팬-Cooling Fan
- 세금계산서 가능
- 거래방식
- 상태
- 판매지역 전국
- A/S 여부 가능
- 설치 및 시운전 불가능
상세정보

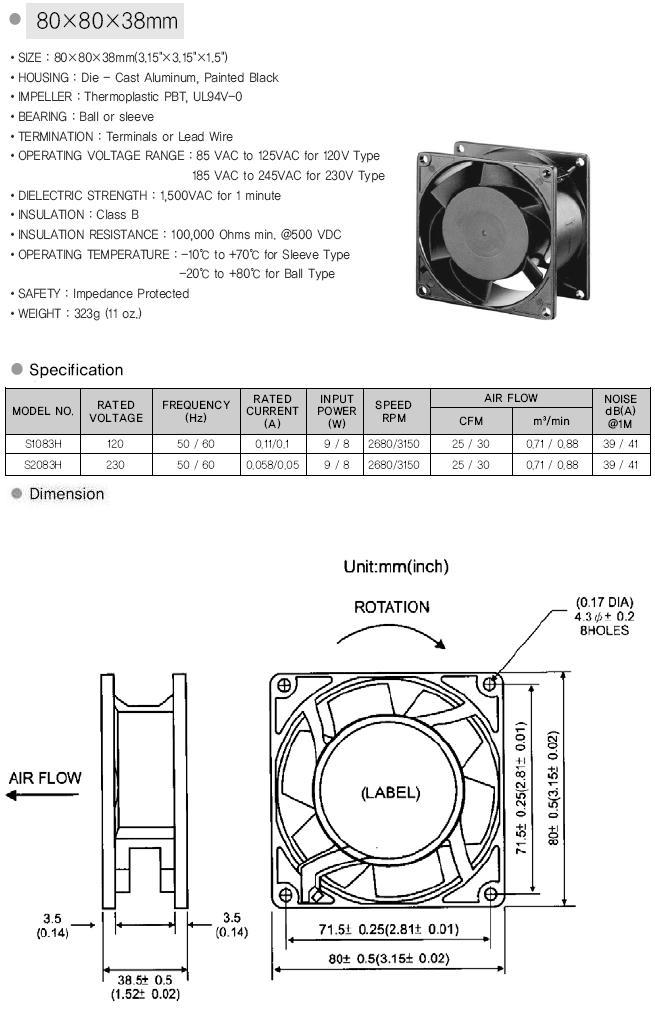

Model NoWYS1083H WYS2083H
TYPE80×80×38mm (Ball Bearing type)
정격(Rating)100~230V
입력(Input)100~230V
출력(Output)-
용량(Capacity)0.05~0.11A
사양 및 특징
?SIZE : 80×80×38mm(3.15"×3.15"×1.5")
?HOUSING : Die - Cast Aluminum, Painted Black
?IMPELLER : Thermoplastic PBT, UL94V-0
?BEARING : Ball or sleeve
?TERMINATION : Terminals or Lead Wire
?OPERATING VOLTAGE RANGE : 85 VAC to 125VAC for 120V Type
185 VAC to 245VAC for 230V Type
?DIELECTRIC STRENGTH : 1,500VAC for 1 minute
?INSULATION : Class B
?INSULATION RESISTANCE : 100,000 Ohms min. @500 VDC
?OPERATING TEMPERATURE : -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
?SAFETY : Impedance Protected
?WEIGHT : 323g (11 oz.)
?HOUSING : Die - Cast Aluminum, Painted Black
?IMPELLER : Thermoplastic PBT, UL94V-0
?BEARING : Ball or sleeve
?TERMINATION : Terminals or Lead Wire
?OPERATING VOLTAGE RANGE : 85 VAC to 125VAC for 120V Type
185 VAC to 245VAC for 230V Type
?DIELECTRIC STRENGTH : 1,500VAC for 1 minute
?INSULATION : Class B
?INSULATION RESISTANCE : 100,000 Ohms min. @500 VDC
?OPERATING TEMPERATURE : -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
?SAFETY : Impedance Protected
?WEIGHT : 323g (11 oz.)
