홍보관 제품
    제품코드 G134330
    제품명 평면연마기 중국 신품
    모델명 M7130
    제품분류 공작기계/금속가공연삭기
    사양 300*1000 400*1000, 500*1200, 600*1500, 800*1600/2200
    가격 가격협의
    세금계산서 가능
    거래방식
    상태
    판매지역 전국
    A/S 여부 가능
    설치 및 시운전 가능
    상세정보

    중국  신품  연마기  취급전문  덕주코리아  문의  010 2845 4417



    Product Specification
    Model
    M7130
    M7140
    M7150
    M7160
    M7180
    Max workpiece to be ground(L*W*H)mm
    300*1000*400
    400*1000*400
    500*1250*600
    600*1250*600
    800*1600*600
    Max travel of table (L*W)mm
    300*1000
    400*1000
    500*1250
    600*1250
    800*1600
    Longitudinal motion stroke(Hydraulic)
    1100mm
    1100mm
    1350mm
    1350mm
    1700mm
    Disdtance from table surface to spindle center
    575mm
    575mm
    780mm
    780mm
    780mm
    Vertical feed wheel movement per lap
    1mm
    Vertical feed hand wheel per movement
    0.01mm
    The max stroke of trans verse motion
    450mm
    450mm
    550mm
    650mm
    850mm
    Grinding head motor power
    7.5kw
    7.5kw
    7.5kw
    7.5kw
    9kw
    Total power
    11.5kw
    7.5kw
    13kw
    14.5kw
    kw

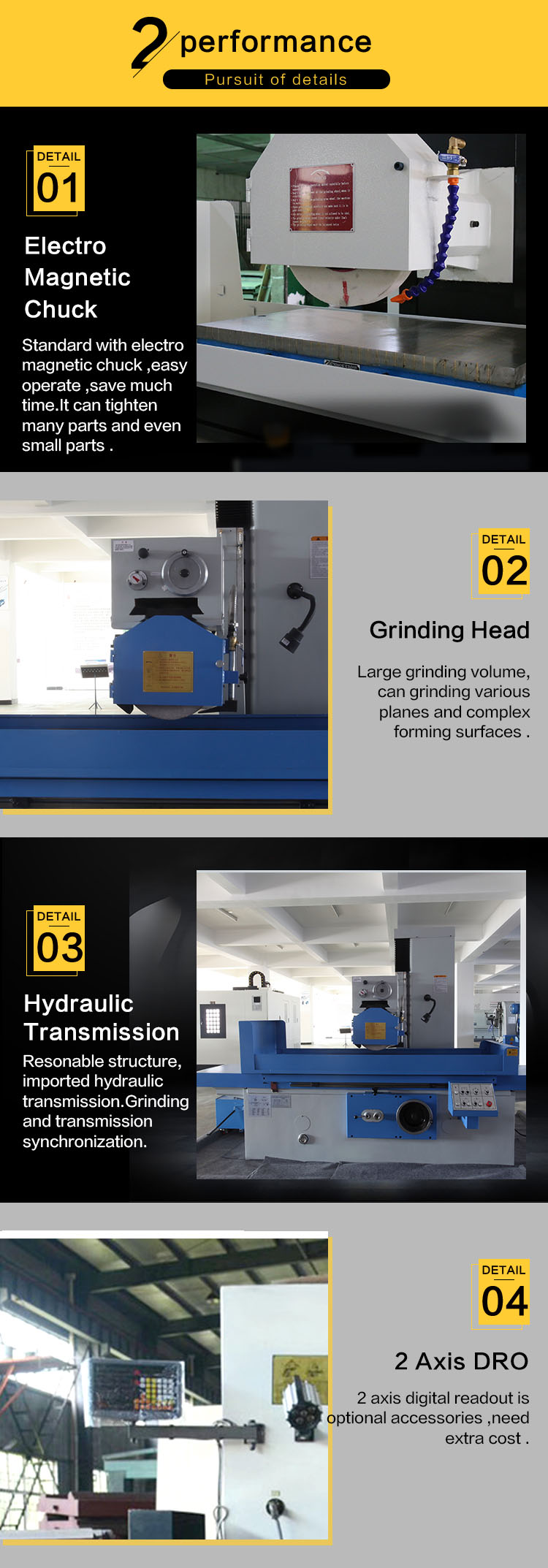

    Details Display
    Recommend Products

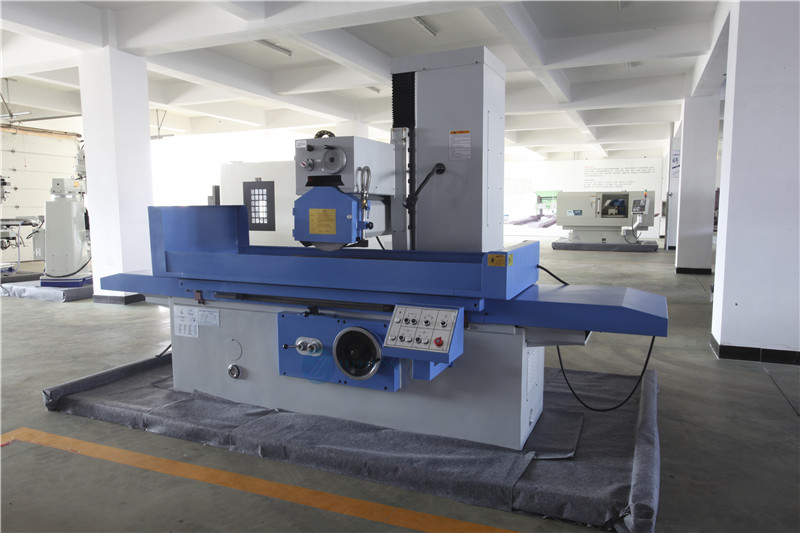

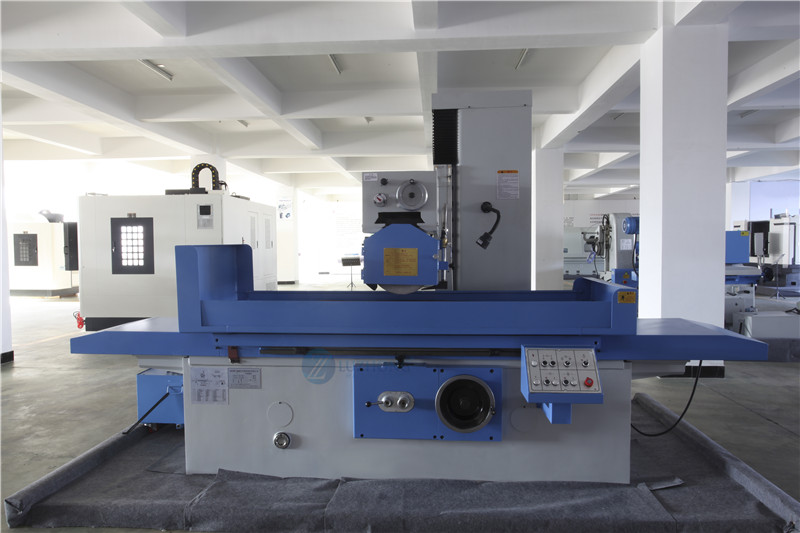

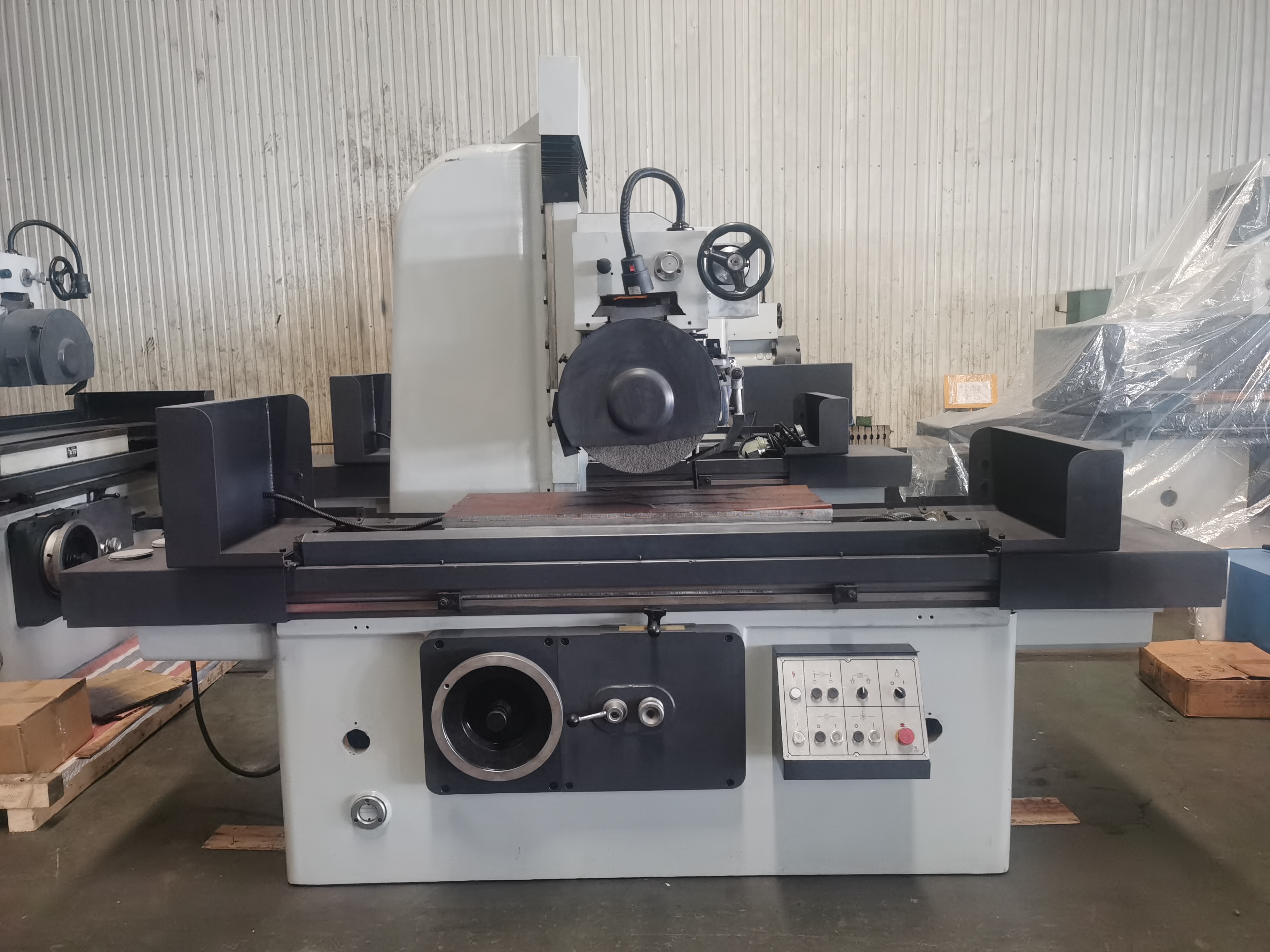

    M71 Series Wheel Head Moving Surface Grinder

    The machine tool adopts the t-type layout form, the guide rail on the column is equipped with a drag plate, the middle position of the guide rail is equipped with a vertical feed mechanism, the transmission accuracy is high, the interchangeability is good, the cross joint is connected in the transmission process, can compensate the center error of the lead screw and the reducer shaft.
    Closed hydraulic system is adopted for the movement of the worktable. The front and rear feed can be manually fed, the hydraulic feed can be automatically fed, and the lead screw can be fed automatically intermittently driven by a variable frequency motor.
    Adopt high strength cast iron foundation, grinding head spindle adopt bobbin or high rigidity sleeve structure, the machine
    overall rigidity is strong, the quality is stable, the operation is stable.

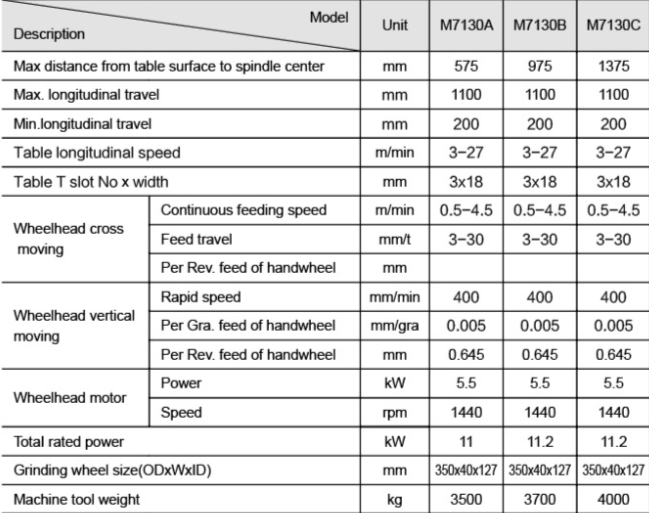

    TECHNICAL PARAMETERS
    STANDARD ACCESSORIES
    Standard of diamond pen
    Wheel chuck and tool for loading and unloading
    Wheel balancing arbor
    Leveling wedges and screw
    Brush
    Electromagnetic chuck
