| 제품코드 | G041826 |
|---|---|
| 제품명 | 전자 팬-Cooling Fan |
| 모델명 | 전자 팬-Cooling Fan |
| 제품분류 | 전자팬-CoolingFan |
| 사양 | 전자 팬-Cooling Fan |
| 가격 | 가격협의 |
| 세금계산서 | 가능 |
| 거래방식 | |
| 상태 | |
| 판매지역 | 전국 |
| A/S 여부 | 가능 |
| 설치 및 시운전 | 불가능 |
상세정보

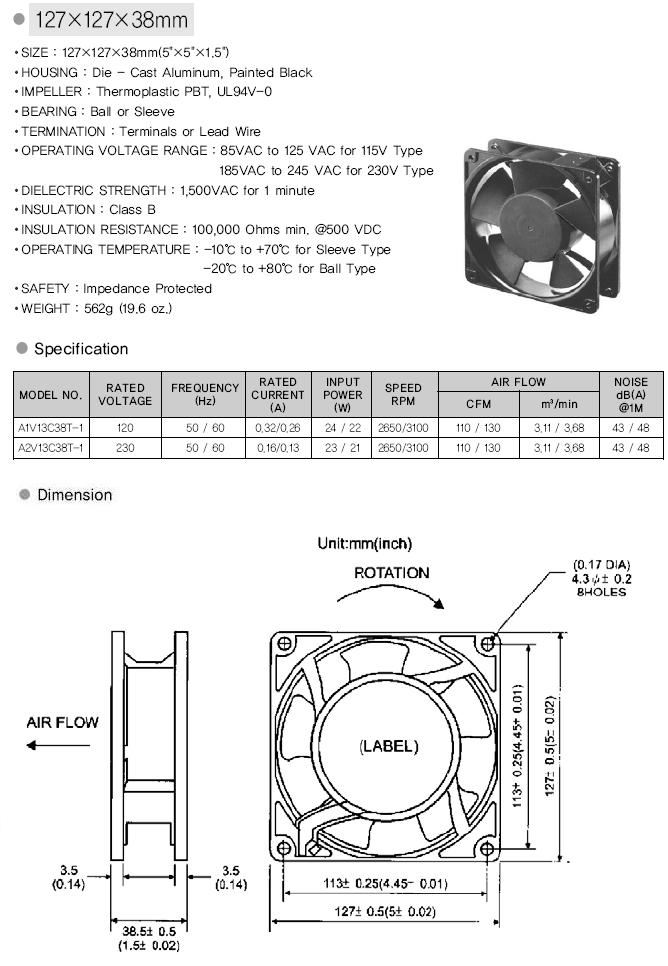

Model NoWYA1V13C38T-1 WYA2V13C38T-1
사양 및 특징
?SIZE : 127×127×38mm(5"×5"×1.5")
?HOUSING : Die - Cast Aluminum, Painted Black
?IMPELLER : Thermoplastic PBT, UL94V-0
?BEARING : Ball or Sleeve
?TERMINATION : Terminals or Lead Wire
?OPERATING VOLTAGE RANGE : 85VAC to 125 VAC for 115V Type
185VAC to 245 VAC for 230V Type
?DIELECTRIC STRENGTH : 1,500VAC for 1 minute
?INSULATION : Class B
?INSULATION RESISTANCE : 100,000 Ohms min. @500 VDC
?OPERATING TEMPERATURE : -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
?SAFETY : Impedance Protected
?WEIGHT : 562g (19.6 oz.)
?HOUSING : Die - Cast Aluminum, Painted Black
?IMPELLER : Thermoplastic PBT, UL94V-0
?BEARING : Ball or Sleeve
?TERMINATION : Terminals or Lead Wire
?OPERATING VOLTAGE RANGE : 85VAC to 125 VAC for 115V Type
185VAC to 245 VAC for 230V Type
?DIELECTRIC STRENGTH : 1,500VAC for 1 minute
?INSULATION : Class B
?INSULATION RESISTANCE : 100,000 Ohms min. @500 VDC
?OPERATING TEMPERATURE : -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
?SAFETY : Impedance Protected
?WEIGHT : 562g (19.6 oz.)
