| 제품코드 | G041827 |
|---|---|
| 제품명 | 전자 팬-Cooling Fan |
| 모델명 | 전자 팬-Cooling Fan |
| 제품분류 | 전자팬-CoolingFan |
| 사양 | 전자 팬-Cooling Fan |
| 가격 | 가격협의 |
| 세금계산서 | 가능 |
| 거래방식 | |
| 상태 | |
| 판매지역 | 전국 |
| A/S 여부 | 가능 |
| 설치 및 시운전 | 불가능 |
상세정보

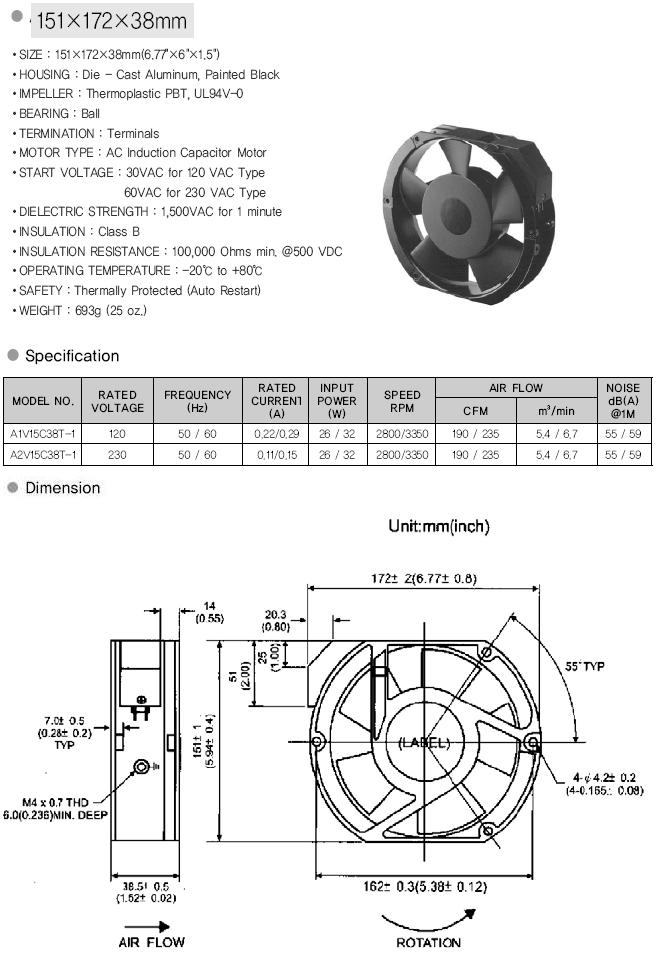

Model NoWYA1V15C38T-1 WYA2V15C38T-1
사양 및 특징
?SIZE : 151×172×38mm(6.77"×6"×1.5")
?HOUSING : Die - Cast Aluminum, Painted Black
?IMPELLER : Thermoplastic PBT, UL94V-0
?BEARING : Ball
?TERMINATION : Terminals
?MOTOR TYPE : AC Induction Capacitor Motor
?START VOLTAGE : 30VAC for 120 VAC Type
60VAC for 230 VAC Type
?DIELECTRIC STRENGTH : 1,500VAC for 1 minute
?INSULATION : Class B
?INSULATION RESISTANCE : 100,000 Ohms min. @500 VDC
?OPERATING TEMPERATURE : -20℃ to +80℃
?SAFETY : Thermally Protected (Auto Restart)
?WEIGHT : 693g (25 oz.)
?HOUSING : Die - Cast Aluminum, Painted Black
?IMPELLER : Thermoplastic PBT, UL94V-0
?BEARING : Ball
?TERMINATION : Terminals
?MOTOR TYPE : AC Induction Capacitor Motor
?START VOLTAGE : 30VAC for 120 VAC Type
60VAC for 230 VAC Type
?DIELECTRIC STRENGTH : 1,500VAC for 1 minute
?INSULATION : Class B
?INSULATION RESISTANCE : 100,000 Ohms min. @500 VDC
?OPERATING TEMPERATURE : -20℃ to +80℃
?SAFETY : Thermally Protected (Auto Restart)
?WEIGHT : 693g (25 oz.)
