| 제품코드 | G041832 |
|---|---|
| 제품명 | 전자 팬-Cooling Fan |
| 모델명 | 전자 팬-Cooling Fan |
| 제품분류 | 전자팬-CoolingFan |
| 사양 | 전자 팬-Cooling Fan |
| 가격 | 가격협의 |
| 세금계산서 | 가능 |
| 거래방식 | |
| 상태 | |
| 판매지역 | 전국 |
| A/S 여부 | 가능 |
| 설치 및 시운전 | 불가능 |
상세정보

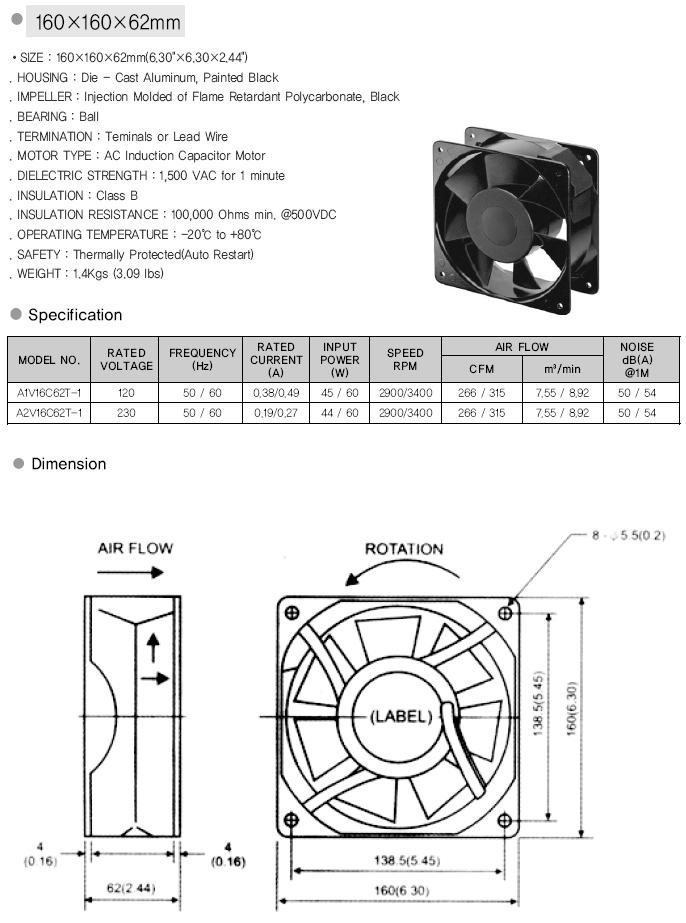

Model NoWYA1V16C62T-1 WYA2V16C62T-1
사양 및 특징
?SIZE : 160×160×62mm(6.30"×6.30×2.44")
. HOUSING : Die - Cast Aluminum, Painted Black
. IMPELLER : Injection Molded of Flame Retardant Polycarbonate, Black
. BEARING : Ball
. TERMINATION : Teminals or Lead Wire
. MOTOR TYPE : AC Induction Capacitor Motor
. DIELECTRIC STRENGTH : 1,500 VAC for 1 minute
. INSULATION : Class B
. INSULATION RESISTANCE : 100,000 Ohms min. @500VDC
. OPERATING TEMPERATURE : -20℃ to +80℃
. SAFETY : Thermally Protected(Auto Restart)
. WEIGHT : 1.4Kgs (3.09 lbs)
. HOUSING : Die - Cast Aluminum, Painted Black
. IMPELLER : Injection Molded of Flame Retardant Polycarbonate, Black
. BEARING : Ball
. TERMINATION : Teminals or Lead Wire
. MOTOR TYPE : AC Induction Capacitor Motor
. DIELECTRIC STRENGTH : 1,500 VAC for 1 minute
. INSULATION : Class B
. INSULATION RESISTANCE : 100,000 Ohms min. @500VDC
. OPERATING TEMPERATURE : -20℃ to +80℃
. SAFETY : Thermally Protected(Auto Restart)
. WEIGHT : 1.4Kgs (3.09 lbs)
